Description

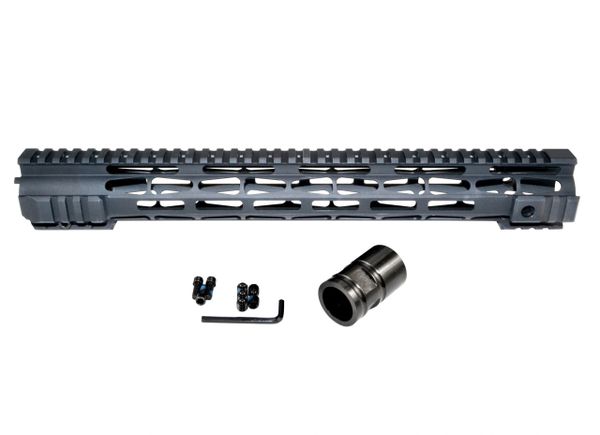

Presma® LR-308 .308 M-LOK Slim Free Float Handguard Model: M38ML15-H
15" Length, ID 1.54"
NOTE: The top rail will only fit flush with DPMS .308 High Profile Uppers - check by measuring the tang at the rear of upper (see photo below).
**
All free float handguards ship with the barrel nut inside the handguard
- look for the threads & remove to begin install process **
Not suitable for Armalite AR-10 or Low Profile DPMS (upper tang measures 0.151" instead of 0.210")
- Attaches directly to upper receiver via steel barrel nut (included)
- Free float design
- Full length Picatinny top rail plus additional mini rails
- M-LOK slots on left, right and bottom
- 6061-T6 aluminum alloy
- U.S.A. Anodization
- Barrel nut is clamp-on, no timing shims required (easy install)
| ITEM | TYPE | Length | Picatinny | M-LOK | Anodized USA | I.D. | BARREL NUT | Material |
| T / L / R / B | L / R / B | |||||||
| M38ML15-H | DPMS .308 High Profile |
15" | 36 / 5 / 5 / 3 | 6 / 6 / 6 |
✔ | 1.54" | Steel | 6061-T6 |
Barrel nut fits 35mm crowsfoot wrench (not included).
